We’re really sorry but we currently have no stock of this product. You can either register below using 'Notify Me' and we will email you when we get more stock, or you can browse alternative items we have available today. Just a small point to note - they might not have the exact features as the product you initially wanted so please be sure to check the details before you buy.

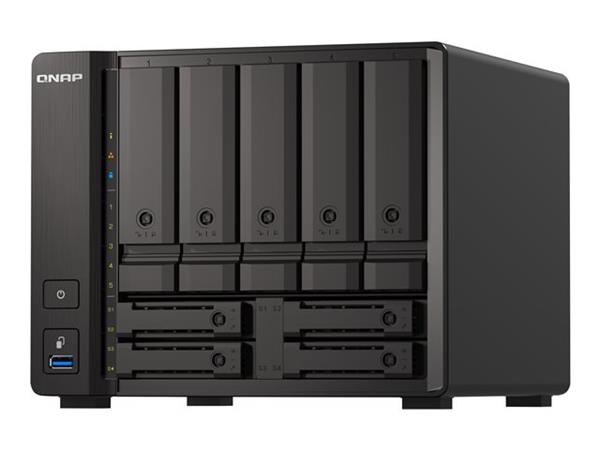

Featuring an AMD Ryzen V1000 series V1500B quad-core processor and 10GbE/2.5GbE connectivity, the 9-bay TS-h973AX packs a high-capacity hybrid storage infrastructure into a compact physical footprint. With five 3.5-inch SATA 6Gbps drive bays, two 2.5-inch U.2 NVMe SSD slots, and two 2.5-inch SATA 6Gbps SSD slots, the TS-h973AX can benefit from SSD caching to boost IOPS-intensive applications. With the ZFS-based QuTS hero operating system, the TS-h973AX ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync to satisfy mission-critical file servers, virtualization servers, collaborative video editing, and efficient data backup and recovery with business-class performance, job reliability, and lower overall cost.
| Product Description | QNAP TS-H973AX-8G - NAS server |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 9 (max) |
| Dimensions (WxDxH) | 22.46 cm x 22.41 cm x 18.265 cm |
| Weight | 3.52 kg () |
| Processor | 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core) |
| Storage Controller | RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60, RAID TP |
| Networking | 10GbE, 2.5GbE |
| RAM | 8 GB |
| Power | AC 120/230 V |
| Storage Operating System | QNAP QuTS hero 4.5.0 |
| System Requirements | Apple OS X 10.10 Yosemite or later, Ubuntu 14.04, CentOS 7.0, IBM AIX 7, Oracle Solaris 10 or later, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
General | |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 9 (max) |
| Width | 22.46 cm |
| Depth | 22.41 cm |
| Height | 18.265 cm |
| Weight | 3.52 kg () |
Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen Embedded V1500B 2.2 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 8 GB (installed) / 32 GB (supported) - DDR4 |
| Flash Memory Installed | 5 GB |
Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60, RAID TP |
Networking | |
| Data Link Protocol | 10GbE, 2.5GbE |
| Network / Transport Protocol | HTTP, HTTPs, DHCP, SMSC, DDNS, FTP, SFTP, PPTP, IPSec, L2TP |
| Remote Management Protocol | SSH, Telnet, HTTP, HTTPS, SMTP, IPMI 1.0, SNMP 2, SNMP 3, TFTP |
| Network Services Compatibility | DDNS, Microsoft CIFS, Apple File Protocol (AFP), Server Message Block (SMB), Web-based Distributed Authoring and Versioning (WebDAV), Microsoft Active Directory (AD), FTP |
| Features | DHCP client, DHCP server, IPv4 support, IPv6 support, Jumbo Frames support, link aggregation trunking, load balancing, port trunking, NAT support, Spanning Tree Protocol (STP) support, wake on LAN (WOL), FXP support, DLNA support, download client, IFTTT agent |
| Encryption Algorithm | SSL, 128-bit AES, 256-bit AES, FIPS 140-2 |
| Compliant Standards | UPnP |
Expansion / Connectivity | |
| Expansion Bays | 5 (total) / 5 (free) x hot-swap - 3.5" , 4 (total) / 4 (free) x hot-swap - 2.5" |
| Interfaces | 1 x Ethernet 10Gb , 3 x USB 3.2 Gen 2 - Type A , 1 x USB 3.2 Gen 2 - Type C , 2 x 2.5 Gigabit Ethernet |
Miscellaneous | |
| Cables Included | 1 x 10GBase-T cable |
| Features | Security lock slot (cable lock sold separately), built-in cooling fan |
| Security Slot Type | Kensington security slot |
| Included Accessories | 2 x hard drive security key, 24 x flat head screws (for 3.5" HDD), 32 x flat head screws (for 2.5" HDD), power cable |
Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Provided | 120 Watt |
Software / System Requirements | |
| Storage Operating System | QNAP QuTS hero 4.5.0 |
| OS Required | Apple OS X 10.10 Yosemite or later, Ubuntu 14.04, CentOS 7.0, IBM AIX 7, Oracle Solaris 10 or later, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 |
Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 22.9 dBA |
