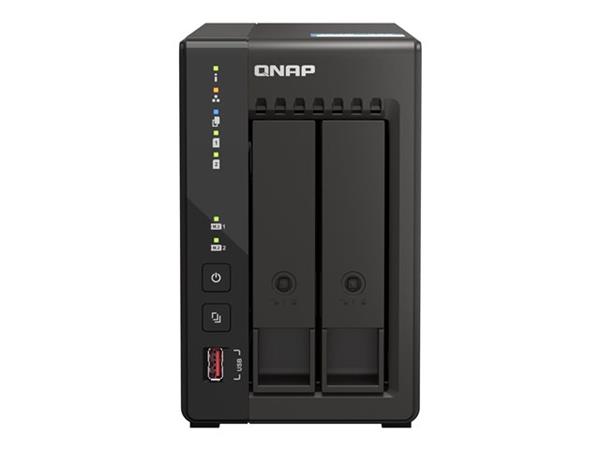

The TS-253E features 2.5GbE connectivity, 8 GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring.
| Product Description | QNAP TS-253E - NAS server |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Dimensions (WxDxH) | 10.2 cm x 22.5 cm x 16.85 cm |
| Weight | 1.28 kg () |
| Localisation | Czech, Chinese (traditional), Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Brazilian Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| Processor | 1 x Intel Celeron J6412 (Quad-Core) |
| Storage Controller | RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, 50, JBOD, 60 |
| Networking | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Performance | Concurrent connections (CIFS): 1500 , Maximum number of storage pool: 128 , Maximum number of volume: 128 , Maximum volume size: 250 TB , Maximum pool size: 308 TB , Maximum LUN size: 250 TB , Maximum number of targets LUN: 256 , Minimum snapshot interval: 5 min , Maximum FTP connection: 1024 , Local user account: 4096 , Local group account: 512 , Domain user/group account: 200000 , Log recording: 3000 events per second , Virtual hosts: 32 |
| RAM | 8 GB |
| Power | AC 100-240 V |
| Storage Operating System | QNAP QTS 5.0.0 |
| System Requirements | Apple MacOS X 10.10 or later, Ubuntu Linux 14.4 (64-bit), CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Oracle Solaris 10 or later, QNAP QVR Pro, QNAP QVR Elite |
| Manufacturer Warranty | 3-year warranty |
General | |
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 2 (max) |
| Width | 10.2 cm |
| Depth | 22.5 cm |
| Height | 16.85 cm |
| Weight | 1.28 kg () |
| Built-in Devices | Led panel |
| Localisation | Czech, Chinese (traditional), Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Brazilian Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Turkish |
Processor / Memory | |
| Processors Installed | 1 x Intel Celeron J6412 |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.6 GHz |
| RAM | 8 GB (installed) / 8 GB (supported) |
| Flash Memory Installed | 4 GB |
Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE |
| Network / Transport Protocol | CIFS, iSCSI, QuFTP, IPv6, IPv4, DDNS, PPTP, L2TP, IPSec, WireGuard, QBelt, OpenVPN |
| Remote Management Protocol | TFTP, SNMP 2, SNMP 3, SSH, Telnet, HTTP, HTTPS, RADIUS |
| Network Services Compatibility | Apple File Protocol (AFP), Microsoft CIFS, FTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4), SFTP, HTTP, HTTPS |
| Performance | Concurrent connections (CIFS): 1500 , Maximum number of storage pool: 128 , Maximum number of volume: 128 , Maximum volume size: 250 TB , Maximum pool size: 308 TB , Maximum LUN size: 250 TB , Maximum number of targets LUN: 256 , Minimum snapshot interval: 5 min , Maximum FTP connection: 1024 , Local user account: 4096 , Local group account: 512 , Domain user/group account: 200000 , Log recording: 3000 events per second , Virtual hosts: 32 |
| Features | Floating point unit, built-in hardware transcoding, SSD cache acceleration support, wake on LAN (WOL), Jumbo Frames support, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, iSCSI service, file-based iSCSI LUN, block-based iSCSI LUN, LUN masking, LUN mapping, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, SSD Cache RAID, Mount Smart Phone (MTP), FTP server, FXP support, Object Storage, file station, domain security, Domain Controller, Windows ACL, user quota managerment, group quota, folder quota, home folder, Resource Monitor, Network Recycle Bin, schedule on/off, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, WebDAV server support, Qsync, HybridMount, Windows ODX, hybrid backup sync, network drive mount, Hyper Data Protector, Boxafe, Qsirch, QuMagie, LDAP server, HD Station, SQL Server, Qfiling, QmailAgent, QuWAN, DA Driver Analyzer, Q'center (NAS CMS) |
| Encryption Algorithm | AES-NI, SSL, TLS, 256-bit AES, FIPS 140-2, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3 |
Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 0 (free) x M.2 2280 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 , 2 x USB 2.0 - Type A , 2 x USB 3.2 Gen 2 - Type A , 2 x HDMI output |
Miscellaneous | |
| Cables Included | 1 x network cable |
| Features | 70mm cooling fan, security lock slot (cable lock sold separately), Secure Erase, Smart Fan, built-in firewall |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2 |
| Included Accessories | Power cable |
Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 18.09 Watt |
| Power Provided | 65 Watt |
Software / System Requirements | |
| Storage Operating System | QNAP QTS 5.0.0 |
| Software Included | IronWolf Health Management, vSphere plug-in for VMware, Windows Update Agent, McAfee AntiVirus, QNAP Virtualization Station |
| OS Required | Apple MacOS X 10.10 or later, Ubuntu Linux 14.4 (64-bit), CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Oracle Solaris 10 or later, QNAP QVR Pro, QNAP QVR Elite |
Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.32 kg |
Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
