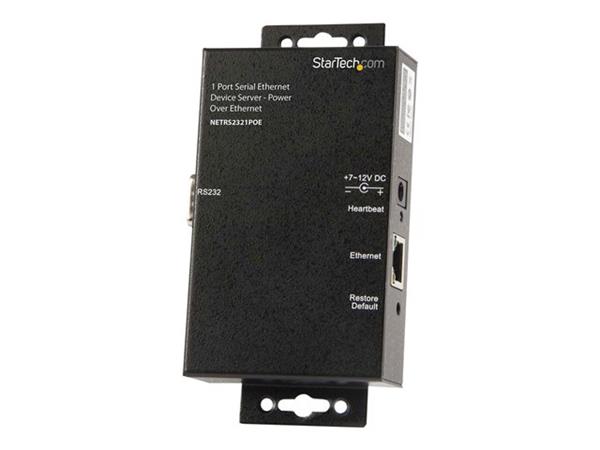

Connect to, configure and remotely manage an RS-232 serial device over an IP network. The NETRS2321POE 1 Port RS232 Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN, and access them as if they were right beside you - even over the Internet!
The Serial Device Server is designed to function seamlessly with your other integrated and add-on serial ports as if they were right inside your computer. Perfect for industrial automation, security, Point of Sale, or any long-range serial application, delivering reliable performance in any environment.
The Ethernet/serial device server supports PoE (Power over Ethernet) when connected to a PoE compliant device - eliminating the need for an external power supply and outlet, and making it easier to situate the device server as needed.
| Product Description | StarTech.com 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet - Serial over IP Device Server Adapter - PoE-Powered (NETRS2321POE) - device server |
| Device Type | Device server |
| Form Factor | External |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Power Over Ethernet (PoE) Supported | PoE |
| Dimensions (WxDxH) | 6.6 cm x 10.7 cm x 2.5 cm |
| Weight | 480 g |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: IES51000POE, IES61002POE, IES81000POE, IES8100POE, POEINJ1G, POEINJ1GW, POEINJ2GI, POEINJ4G, SVA12M5NA, UPOESPLT1G |
General | |
| Device Type | Device server |
| Width | 6.6 cm |
| Depth | 10.7 cm |
| Height | 2.5 cm |
| Weight | 480 g |
| Enclosure Colour | Black |
Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Transfer Rate | 115.2 Kbps |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP |
| Remote Management Protocol | HTTP |
| Status Indicators | Port transmission speed, link OK, link/activity |
| Features | DHCP support, ARP support |
Expansion / Connectivity | |
| Interfaces | 1 x 100Base-TX - RJ-45 , 1 x RS-232 - DB-9 |
Miscellaneous | |
| Compliant Standards | FCC, RoHS |
Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% |
Compatibility Information | |
| Designed For | P/N: IES51000POE, IES61002POE, IES81000POE, IES8100POE, POEINJ1G, POEINJ1GW, POEINJ2GI, POEINJ4G, SVA12M5NA, UPOESPLT1G |
