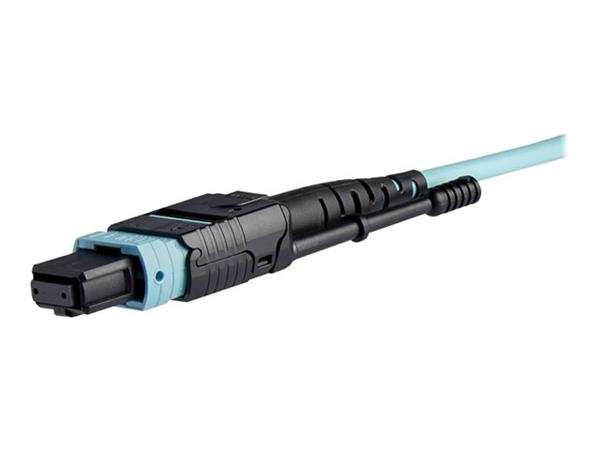

StarTech.com Fiber Breakout Cable 10m MPO / MTP to LC

free standard delivery
StarTech.com Fiber Breakout Cable 10m MPO / MTP to LC
£398.31
Ordered upon request
Delivery:
Standard: Due date unavailable
Key features
  • OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
  • QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
  • COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
  • SPECS: 10m (33ft); Color: Aqua (OM3); 40 Gbps; MTP(F)/PC to 4x Duplex LC Breakout; 850nm or 1300nm VCSEL; Modal Bandwidth: =2000MHz•km at 850nm; Cable OD: 3.0mm (MTP), 2.0mm (LC); Insertion Loss: =0.5dB (MTP), =0.2dB (LC)
Product overview
  • Length: 10m, 5m - <20m
  • Colour: Aqua
Product codes
Quicklinx: DXF1WS00
Mfr#: MPO8LCPL10M

chevron icon

Product Description

Fan out eight fibers from a 40Gbps MPO connection to four 10Gbps LC connections. This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

chevron icon

Specifications

Product Description StarTech.com MTP to LC Breakout Cable - 30 ft / 10m - OM3 Multimode - 40Gb - Pull Tab - Plenum - MPO / MTP Connector - Fiber Optic Cable (MPO8LCPL10M) - breakout cable - 10 m - aqua
Type Breakout cable - OM3
Technology Fibre optic
Type of Fibre Optics Multimode
Features Plenum
Length 10 m
Core / Cladding Diameter 50 / 125 micron
Connector MTP/MPO multi-mode - female - push/pull
Connector (Second End) 8 x LC multi-mode - male - push/pull
Colour Aqua
Manufacturer Warranty Limited lifetime warranty
