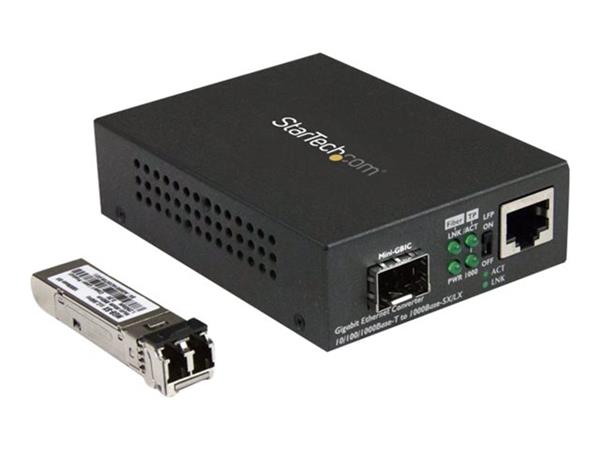

Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804 ft.. This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multi-mode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multi-mode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
Product Description | StarTech.com Multimode (MM) LC Fiber Media Converter for 10/100/1000 Network - 550m - Gigabit Ethernet - 850nm - with SFP Transceiver (MCM1110MMLC) - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE |
Device Type | Fibre media converter - RJ-45 / LC multi-mode |
Form Factor | External |
Cabling Type | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
Data Transfer Rate | 1 Gbps |
Optical Wave Length | 850 nm |
Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
Max Transfer Distance | 550 m |
Power | AC 120/230 V |
Dimensions (WxDxH) | 7 cm x 2.6 cm x 9.7 cm |
Weight | 200 g |
Manufacturer Warranty | 2-year warranty |
Designed For | P/N: SVA5N3NEUA |
General | |
Device Type | Fibre media converter |
Form Factor | External |
Colour | Brown |
Networking | |
Connectivity Technology | Wired |
Cabling Type | 10Base-T, 1000Base-LX, 1000Base-SX, 100Base-TX, 1000Base-T |
Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
Data Transfer Rate | 1 Gbps |
Optical Wave Length | 850 nm |
Max Transfer Distance | 550 m |
Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP), Jumbo Frames support, metal housing |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab |
Expansion / Connectivity | |
Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female , 1 x Ethernet 1000Base-LX/1000Base-SX - LC multi-mode female x 2 |
Miscellaneous | |
MTBF | 50,000 hours |
Compliant Standards | FCC, RoHS, MSA |
Power | |
Power Device | External power adapter |
Voltage Required | AC 120/230 V |
Power Consumption Operational | 5 Watt |
Dimensions & Weight | |
Width | 7 cm |
Depth | 2.6 cm |
Height | 9.7 cm |
Weight | 200 g |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Compatibility Information | |
Designed For | P/N: SVA5N3NEUA |
